The Broadcast directory protocol. More...

#include <broadcast.h>

Inheritance diagram for Broadcast:

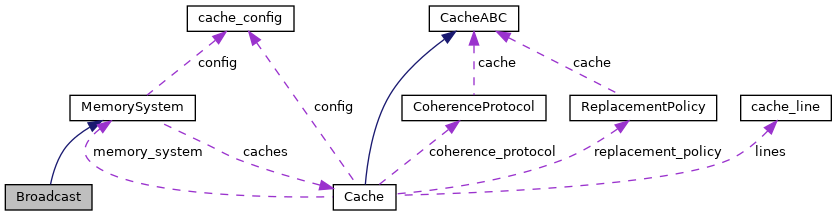

Collaboration diagram for Broadcast:

[legend]

Public Member Functions
	Broadcast (cache_config &config)
	Construct a new Broadcast directory protocol. More...

void	issueBusMsg (bus_msg_e bus_msg, addr_t addr, uint32_t cache_id)
	Issue a bus message from a cache to all other caches. More...

Public Member Functions inherited from MemorySystem
	MemorySystem (cache_config &config)
	Construct a new memory system. More...

void	issuePrRd (addr_t addr, uint32_t cache_id, size_t read_timestamp)
	Issue a PrWr message to a cache. More...

void	issuePrWr (addr_t addr, uint32_t cache_id, size_t write_timestamp)
	Issue a PrRd message to a cache. More...

void	printStats ()
	Print simulation run statistics in CSV format (headerless)

Additional Inherited Members
Data Fields inherited from MemorySystem
size_t	access_timestamp
	The access number of the current memory access.

size_t	most_recent_sibling
	The most recent timestamp of a cache block across all caches.

bool	copies_exist
	Flag to indicate if copies of a cache block exist in other caches.

bool	flushed
	Flag to indicate if a cache flushed one of its lines.

Protected Attributes inherited from MemorySystem
Cache *	caches [MAX_N_CACHES]
	Array of this memory system's caches.

Detailed Description

The Broadcast directory protocol.

Constructor & Destructor Documentation

Broadcast::Broadcast ( cache_config & config )

inline

Construct a new Broadcast directory protocol.

Parameters

config The configuration of the memory system

virtual

Issue a bus message from a cache to all other caches.

Parameters

The documentation for this class was generated from the following files:
