Global type definitions. More...

#include <cstdint>
#include <cstring>
#include <functional>
#include <iomanip>
#include <iostream>
#include <map>

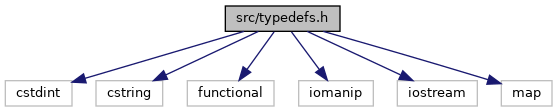

Include dependency graph for typedefs.h:

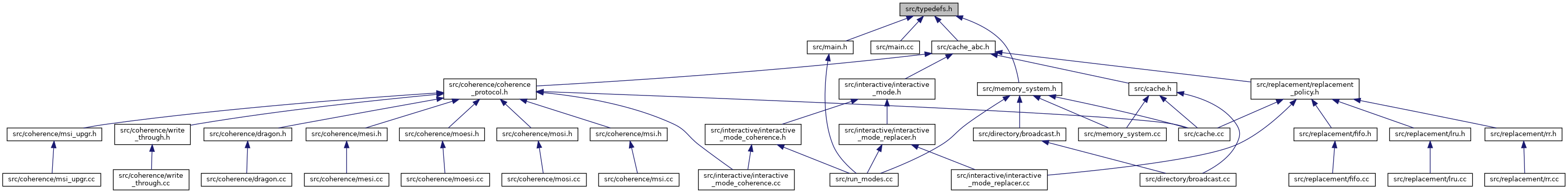

This graph shows which files directly or indirectly include this file:

Data Structures
struct	cache_line
	Cache line fields (without data field) More...

struct	cache_config
	Configuration for an individual memory system. More...

struct	ci_less
	Comparator functor for strings, case insensitive. More...

struct	trace_t
	The format of a single trace. More...

Macros
#define	N_INTERACTIVE_MODE_LINES 5
	The number of cache lines that interactive mode uses.

Typedefs
typedef uint32_t	addr_t
	Memory address.

typedef uint32_t	tag_t
	Cache line tag.

typedef std::function< CoherenceProtocol *(CacheABC &)>	coh_factory_t
	Coherence protocol factory function signature.

typedef std::function< MemorySystem *(cache_config &)>	dir_factory_t
	Directory protocol factory function signature.

typedef std::function< ReplacementPolicy *(CacheABC &, uint32_t, uint32_t)>	rep_factory_t
	Replacement policy factory function signature.

Enumerations
enum	args_single_e { ARG_S_PROG , ARG_CACHE_SIZE , ARG_LINE_SIZE , ARG_ASSOCIATIVITY , ARG_COHERENCE , ARG_REPLACEMENT , ARG_DIRECTORY , ARG_C_COUNT , ARG_S_TRACE_FILE = ARG_C_COUNT , ARG_S_TRACE_LIMIT , ARG_S_COUNT }
	Argument indices for single metrics run.

enum	args_batch_e { ARG_M_PROG , ARG_CONFIG , ARG_M_TRACE_FILE , ARG_M_TRACE_LIMIT , ARG_M_COUNT }
	Argument indices for multiple metrics run.

enum	args_interactive_e { ARG_I_PROG , ARG_INTERACTIVE , ARG_I_COUNT }
	Argument indices for interactive mode.

enum	state_e { Unallocated = 0 , I = 0 , D , E , M , V , O , S , Sc , Sm }
	Cache line state. More...

enum	bus_msg_e { ProcRead , ProcWrite , BusRead , BusReadX , BusUpdate , BusUpgrade , BusWrite , N_MESSAGES }
	Bus message IDs. More...

enum	statistic_e { ReadMiss = N_MESSAGES , WriteMiss , LineFlush , LineFetch , CacheToCache , WriteBack , WriteMemory , Eviction , Exclusion , Intervention , Invalidation , N_STATISTICS }
	Cache runtime statistic IDs. More...

Variables
std::map< std::string, coh_factory_t, ci_less > *	coherence_map
	A map from coherence protocol names to their factory functions.

std::map< std::string, dir_factory_t, ci_less > *	directory_map
	A map from directory protocol names to their factory functions.

std::map< std::string, rep_factory_t, ci_less > *	replacement_map
	A map from replacement policy names to their factory functions.

Detailed Description

Global type definitions.

Enumeration Type Documentation

Bus message IDs.

Enumerator
ProcRead	Read access on a cache line.
ProcWrite	Write access on a cache line.
BusRead	Bus read message issued by a cache.
BusReadX	Bus read-exclusive message issued by a cache.
BusUpdate	Bus update message issued by a cache.
BusUpgrade	Bus write message issued by a cache.
BusWrite	Bus upgrade message issued by a cache.
N_MESSAGES	Number of bus messages.

Cache line state.

Enumerator
Unallocated	Alias for invalid, used in protocols that don't invalidate.
I	Invalid.
D	Dirty exclusive.
E	Clean exclusive.
M	Modified exclusive.
V	Valid exclusive.
O	Owned.
S	Shared.
Sc	Shared clean.
Sm	Shared modified.

Cache runtime statistic IDs.

Enumerator
ReadMiss	Read miss on a cache line.
WriteMiss	Write miss on a cache line.
LineFlush	Cache line data broadcasted across memory bus.
LineFetch	Cache line data retrieved from main memory.
CacheToCache	Transfer between two caches.
WriteBack	Cache line data written to main memory.
WriteMemory	Direct write from CPU to main memory.
Eviction	Cache line evicted by the replacement policy.
Exclusion	Cache line changes from shared (O, S, Sc, Sm) to singular (D, E, M, V)
Intervention	Cache line changes from singular (D, E, M, V) to shared (O, S, Sc, Sm)
Invalidation	Cache line state set to invalid (I)
N_STATISTICS	The number of statistics a cache keeps track of; not a statistic.
