Cache Class Reference

An L1 Cache with coherence protocol and replacement policy. More...

#include <cache.h>

Inheritance diagram for Cache:

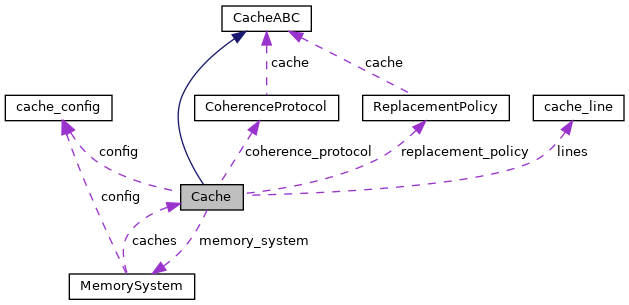

Collaboration diagram for Cache:

Public Member Functions
	Cache (MemorySystem &memory_system, uint32_t cache_id, cache_config &config)
	Construct a new cache. More...
void	receivePrRd (addr_t addr)
	Issue a PrRd message to this cache. More...
void	receivePrWr (addr_t addr)
	Issue a PrWr message to this cache. More...
bool	issueBusMsg (bus_msg_e bus_msg)
	Issue a BusRd message to neighboring caches. More...
void	receiveBusMsg (bus_msg_e bus_msg, addr_t addr)
	Issue a bus message to this cache. More...
state_e	getLineState (uint32_t set_idx, uint32_t way_idx)
	Get the state of a line in the cache. More...
size_t	getTimestamp (addr_t addr)
	Get the access number of the most recent edit to a cache line. More...
void	printStats ()
	Print simulation run statistics in CSV format (headerless) More...

Private Member Functions
void	stateChangeStatistic (state_e before, state_e after)
	Update the correct state transition statistic. More...
cache_line *	allocate (addr_t addr)
	Initialize a line in the cache, performing a writeback if necessary. More...
cache_line *	findLine (addr_t addr)
	Locate a line in the cache. More...

Private Attributes
MemorySystem &	memory_system
	Parent memory system.
cache_config &	config
	Config from the parent memory system.
CoherenceProtocol *	coherence_protocol
	Coherence protocol used by this cache.
ReplacementPolicy *	replacement_policy
	Replacement policy used by this cache.
cache_line *	lines
	Cache lines contained in this cache.
uint32_t	cache_id
	ID of this cache.
uint32_t	num_sets
	The number of sets in the cache.
uint32_t	line_offset
	Number of bits that come before the line offset field.
uint32_t	tag_offset
	Number of bits that come before the tag field.
size_t	statistics [N_STATISTICS] = { 0 }
	Cache runtime statistics.
addr_t	curr_access_addr
	The address being accessed by the current processor read or write. More...

Detailed Description

An L1 Cache with coherence protocol and replacement policy.

Constructor & Destructor Documentation

Cache()

Cache::Cache	(	MemorySystem &	memory_system,
		uint32_t	cache_id,
		cache_config &	config
	)

Construct a new cache.

Parameters

memory_system	The parent memory system
cache_id	The ID of this cache
config	The configuration of the parent memory system

Member Function Documentation

allocate()

cache_line * Cache::allocate ( addr_t  addr )

private

Initialize a line in the cache, performing a writeback if necessary.

Parameters

addr	The address that requires caching

Returns

A pointer to the newly initialized cache line

Note

The line's state will be 'Invalid'

findLine()

cache_line * Cache::findLine ( addr_t  addr )

private

Locate a line in the cache.

Parameters

addr	The address being accessed

Returns

A pointer to the line if found, else nullptr

getLineState()

state_e Cache::getLineState ( uint32_t  set_idx, uint32_t  way_idx  )

virtual

Get the state of a line in the cache.

Parameters

set_idx	The index of the set containing the line
way_idx	The index of the way containing the line (0 to assoc-1)

Returns

The state of the cache line

Implements CacheABC.

getTimestamp()

size_t Cache::getTimestamp

(

addr_t

addr

)

Get the access number of the most recent edit to a cache line.

Parameters

addr	The address to ckeck

Returns

The timestamp of the cache line if the address is in the cache, otherwise 0

issueBusMsg()

bool Cache::issueBusMsg ( bus_msg_e  bus_msg )

virtual

Issue a BusRd message to neighboring caches.

Parameters

bus_msg

The specific bus message

Returns

True if the 'COPIES-EXIST' line was asserted

Implements CacheABC.

printStats()

void Cache::printStats

(

)

Print simulation run statistics in CSV format (headerless)

Note

Does not produce output if the cache is unused

receiveBusMsg()

void Cache::receiveBusMsg	(	bus_msg_e	bus_msg,
		addr_t	addr
	)

Issue a bus message to this cache.

Parameters

bus_msg	The specific bus message
addr	The address accessed

receivePrRd()

void Cache::receivePrRd

(

addr_t

addr

)

Issue a PrRd message to this cache.

Parameters

addr	The address accessed

receivePrWr()

void Cache::receivePrWr

(

addr_t

addr

)

Issue a PrWr message to this cache.

Parameters

addr	The address accessed

stateChangeStatistic()

void Cache::stateChangeStatistic ( state_e  before, state_e  after  )

private

Update the correct state transition statistic.

Parameters

before	The state the line was in before
after	The new state of the line

Field Documentation

curr_access_addr

addr_t Cache::curr_access_addr

private

The address being accessed by the current processor read or write.

Note

Remembering the currently accessed address only works because each memory access is atomic, i.e. all resulting bus messages will finish before the next memory access

---

The documentation for this class was generated from the following files:

• src/cache.h
• src/cache.cc
