The cache interface. More...
#include <cache_abc.h>

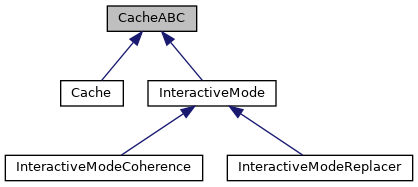

Inheritance diagram for CacheABC:
Public Member Functions | |
| virtual bool | issueBusMsg (bus_msg_e bus_msg)=0 |
| Issue a BusRd message to neighboring caches. More... | |
| virtual state_e | getLineState (uint32_t set_idx, uint32_t way_idx)=0 |
| Get the state of a line in the cache. More... | |
Detailed Description
The cache interface.
Member Function Documentation
◆ getLineState()
|
pure virtual |
Get the state of a line in the cache.
- Parameters
-
set_idx The index of the set containing the line way_idx The index of the way containing the line (0 to assoc-1)
- Returns
- The state of the cache line
Implemented in InteractiveMode, and Cache.
◆ issueBusMsg()
|
pure virtual |
Issue a BusRd message to neighboring caches.
- Parameters
-
bus_msg The specific bus message
- Returns
- True if the 'COPIES-EXIST' line was asserted
Implemented in InteractiveModeCoherence, InteractiveMode, and Cache.
The documentation for this class was generated from the following file:
- src/cache_abc.h
